Phased Array Ultrasonic Testing (PAUT)

Presented by/ Credits to: www.sajetc.com

saj logo

Introduction to Ultrasonic Testing (UT)

Presentation On Phased Array UT in Lieu of Radiography Ultrasonic test instruments have been used in industrial applications for more than sixty years. Since the 1940s, the laws of physics that govern the propagation of high frequency sound waves through solid materials have been used to detect hidden cracks, voids, porosity, and other internal discontinuities in metals, composites, plastics, and ceramics, as well as to measure thickness and analyze material properties.

Sound waves are simply organized mechanical vibrations traveling through a medium. These waves will travel through a given medium at a specific speed or velocity, in a predictable direction, and when they encounter a boundary with a different medium they will be reflected or transmitted according to simple rules.

Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography

Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography

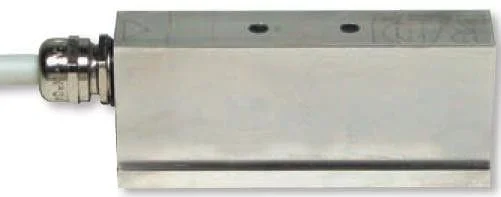

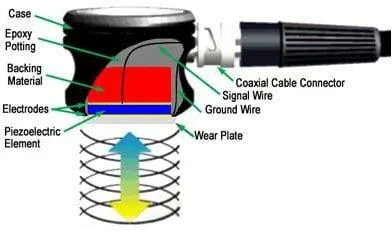

Conventional UT Probe Configuration

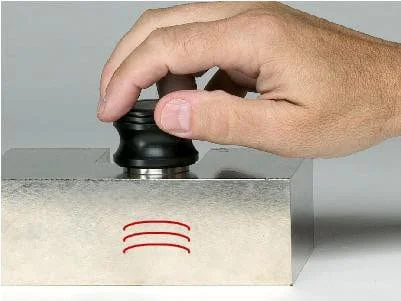

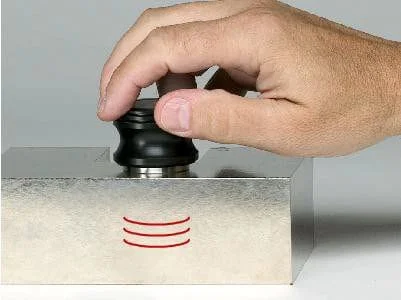

With a conventional UT probe, a single piezoelectric element converts an electrical signal into a mechanical vibration.

Presentation On Phased Array UT in Lieu of Radiography

Source: NDT Resource Center (www.ndt-ed.org)

Phased Array Ultrasonic Testing (PAUT)

ultrasound.jpgWhat we see in Medical Ultrasonic Test

What is the Difference in Medical Ultrasonogram

and Phased Array Ultrasonic Test?

Nothing Special, Both are Phase Array Ultrasonic Test

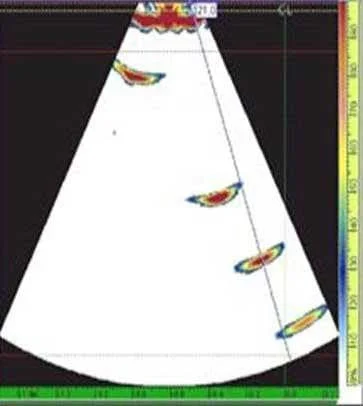

PA Image.jpg

Industrial

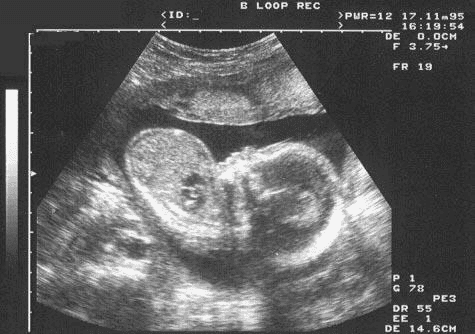

Fetal Ultrasound - Full size.jpg

Medical

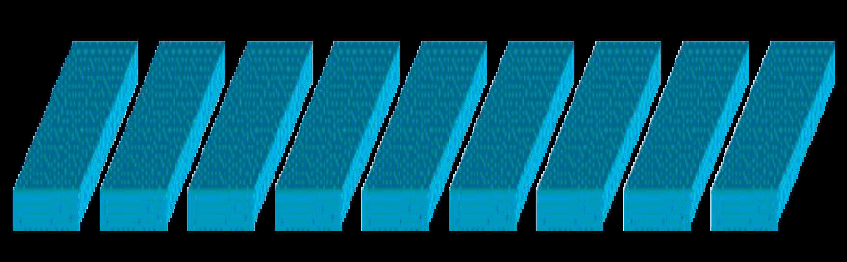

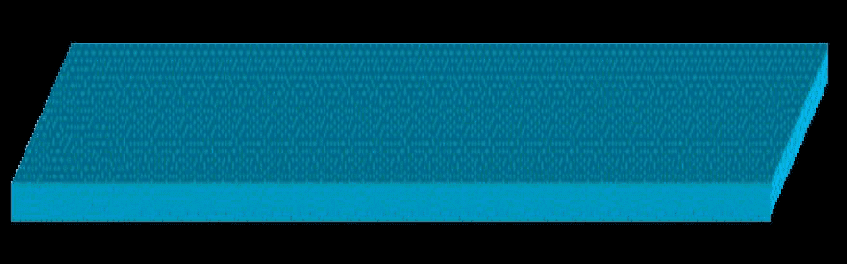

Phased Array Probe Configuration

  • Essentially, a phased-array probe is a long conventional probe

Presentation On Phased Array UT in Lieu of Radiography

cut into many small elements, which are individually excited.

Presentation On Phased Array UT in Lieu of Radiography

12

Phased Array Probe Configuration

  • It is like having many small conventional UT probes integrated inside a single probe.

Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography

Presentation On Phased Array UT in Lieu of Radiography

128 elements !

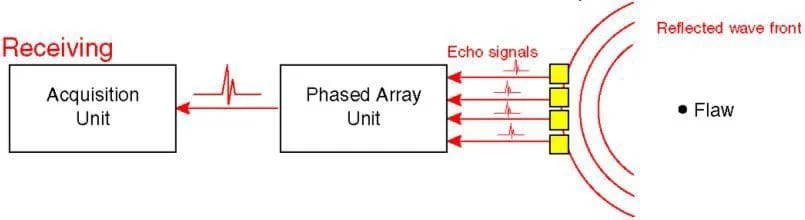

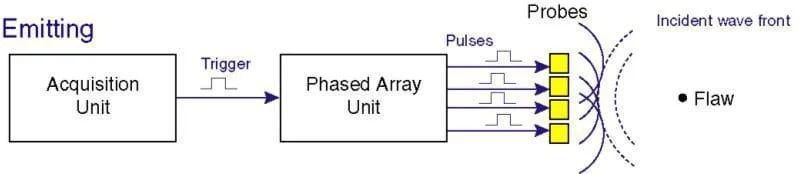

How Does Phased Array Work?

Presentation On Phased Array UT in Lieu of Radiography

Presentation On Phased Array UT in Lieu of Radiography

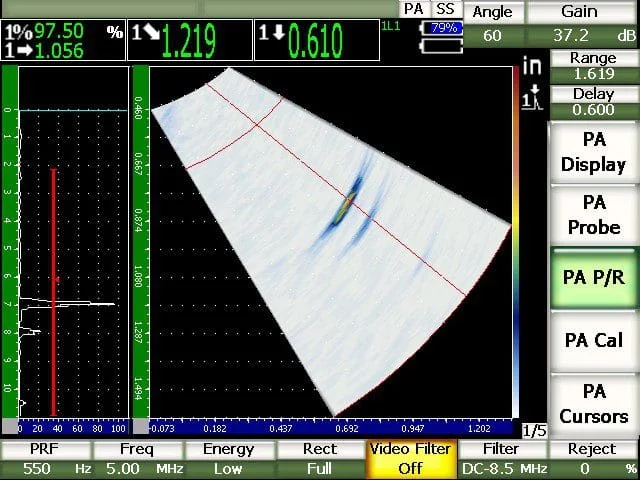

Phased Array Angle Coverage

Angle beam covers from angle 40o to 70o with 1o angle increment.

Presentation On Phased Array UT in Lieu of Radiography

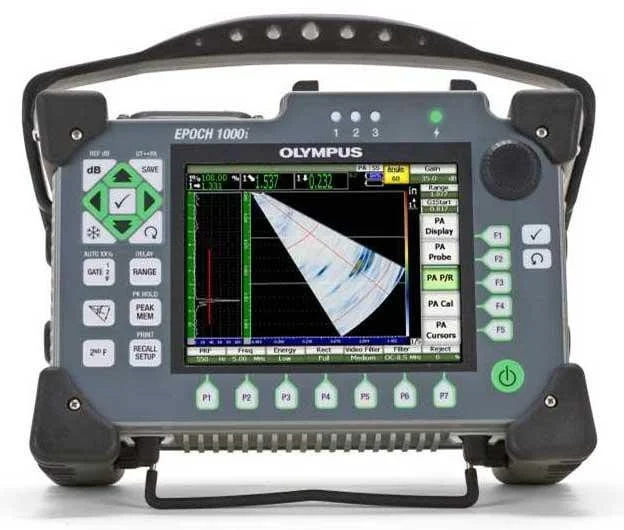

Olympus EPOCH 1000i Phased Array Equipment

EPOCH 1000i

Epoch 1000i.jpg

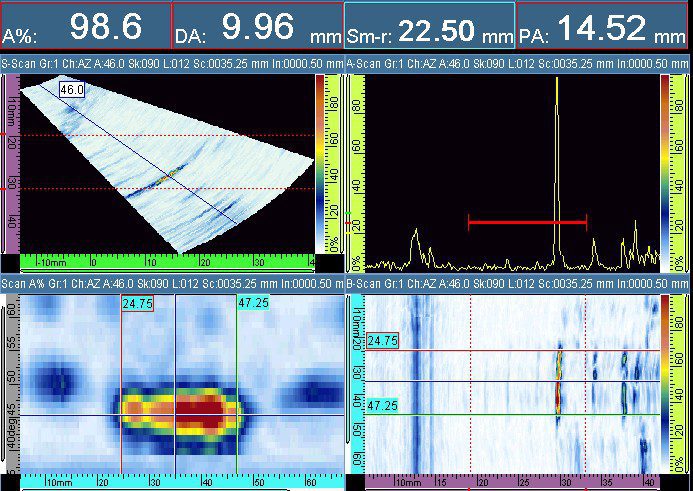

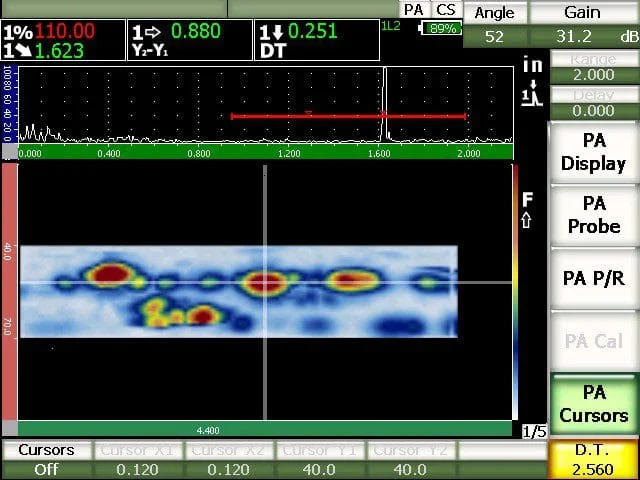

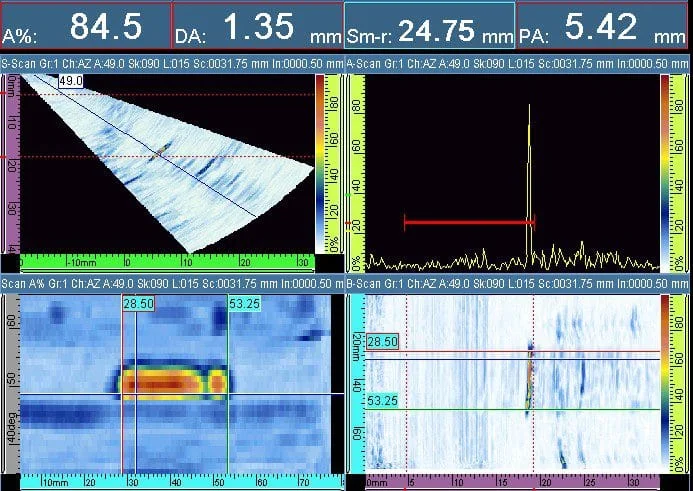

A-Scan, S-Scan and C-Scan

Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography

A-Scan

C-Scan

S-Scan

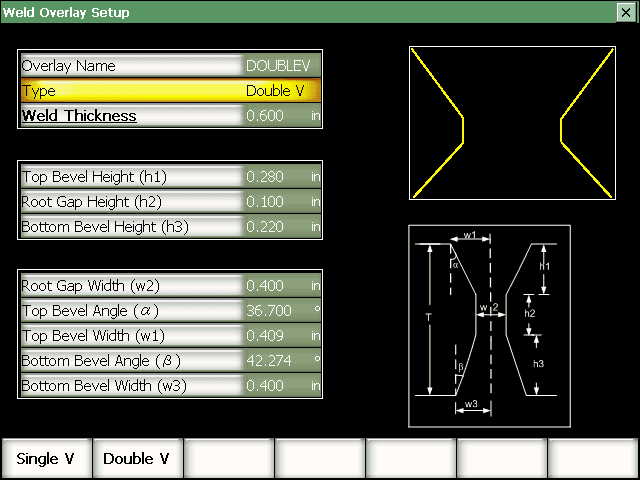

Weld Overlay System

Full weld overlay system that enables to visualize the relative position of indications in relation to the weld geometry. Easily Configure the Weld Geometry in the equipment. Such as type of weld joint, weld preparation angle, bevel height, bevel width, root gap, root face, thickness of the specimen etc.

Presentation On Phased Array UT in Lieu of Radiography

Presentation On Phased Array UT in Lieu of Radiography Defect Positioning

www.sajetc.com

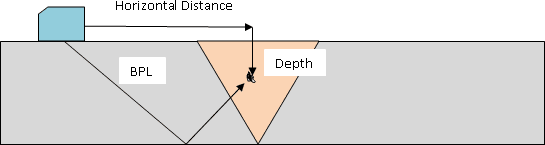

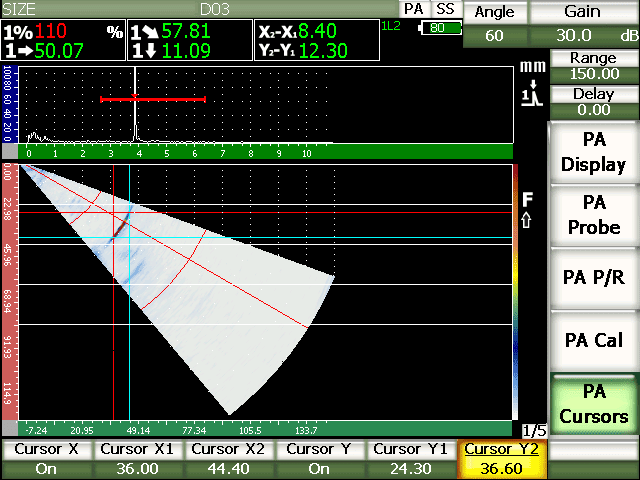

Defect Positioning

D:\SAJ_ENGINEERING_TRDADING_COMPANY\OLYMPUS\Olympus-NDT3\Epoch1000\610a-01c6-4892-2b8f\ScreenCapture21.png

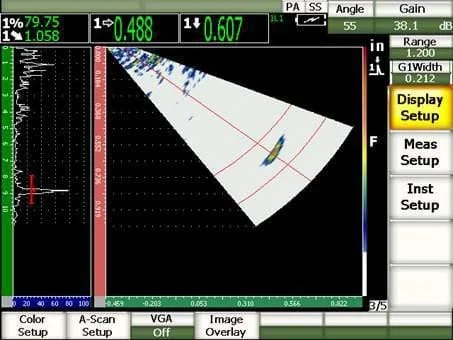

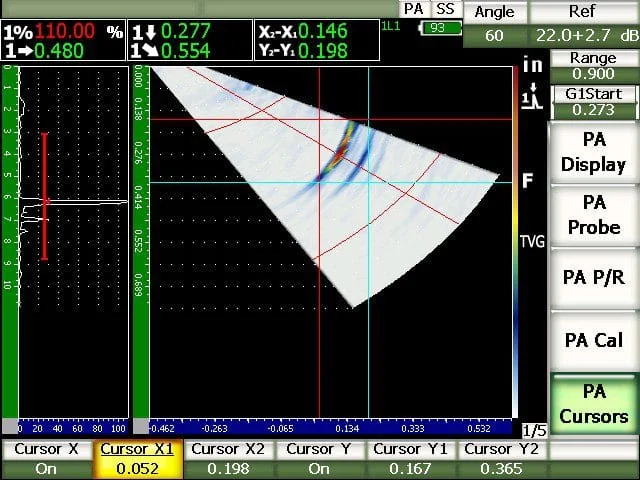

Defect Sizing

CursorsWithMeasurements

Image sizing cursors available for X2 – X1 and/or Y2 – Y1 indication sizing

    • Defect can be accurately sized
    • X-direction i.e. defect length
    • Y-direction i.e. defect depth

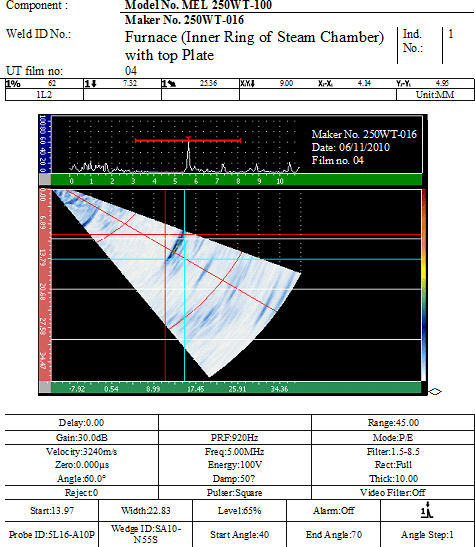

Presentation On Phased Array UT in Lieu of Radiography Report with complete information

Immediate report from the equipment can be transferable through pen drive.

Comparison of RT and PAUT

  1. Radiation safety
  2. Licensing
  3. Disruption to work area
  4. Chemical wastes
  5. Large volumes of film
  6. Film storage and deterioration
  7. Subjective interpretation
  8. Relatively slow inspection
  9. RT cannot size in vertical plane 10.RT poor at detecting planar defects.
  10. Phased Array Ultrasonic Testing (PAUT)

potentially offers solutions to ECA

  1. Capability of vertical sizing
  2. Better detection of critical planar defects
  3. Inspections tailored to weld profile and defects
  4. Generally PAUT has better detection than RT, especially for cracks
  5. Many trials performed globally
  6. Overall results support PAUT as better quality inspections.
    1. Higher licensing costs for RT
    2. Major headaches in shipping and storing isotopes
    3. Higher cost in waste disposal, storage etc.
    4. Cheaper PAUT Inspection Cost
    5. No film cost in PAUT
    6. No chemical cost in PAUT
    7. No production interruption in PAUT.

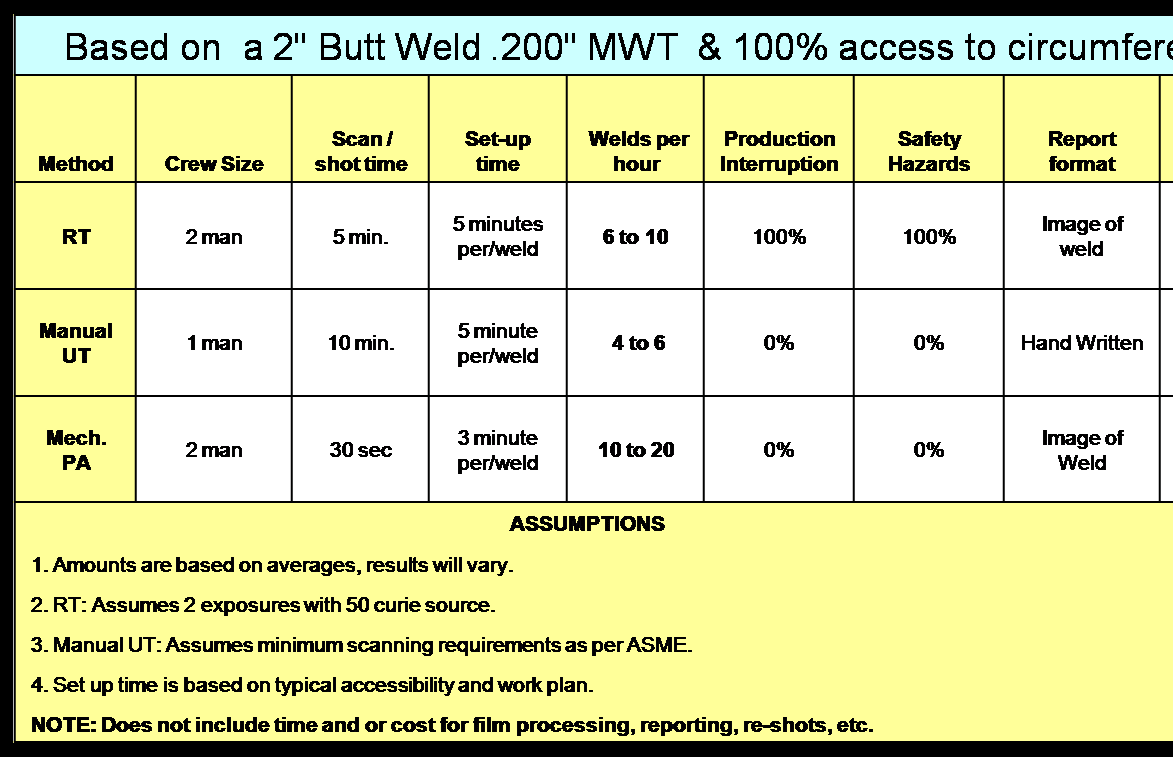

Presentation On Phased Array UT in Lieu of RadiographyComparison of Scan Times between PAUT vs. RT

saj logowww.sajetc.com

1 man

1 min

12 to 15

Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography

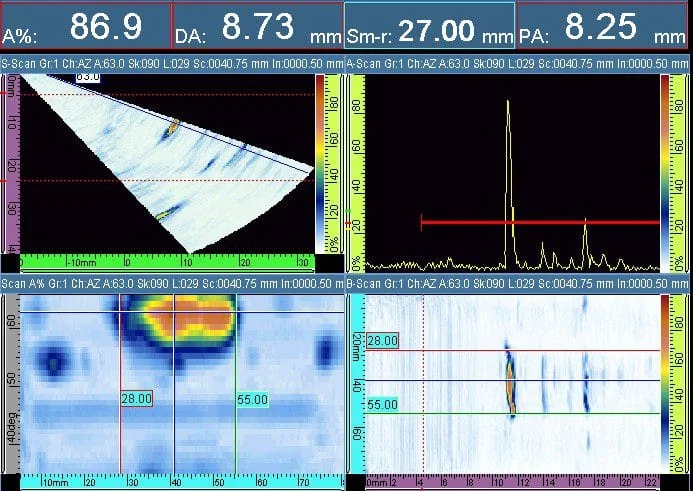

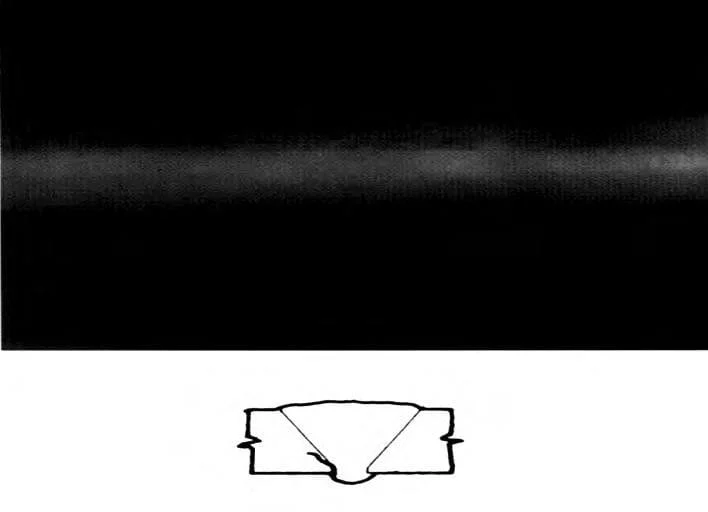

Root Crack

Phased Array Image

Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography

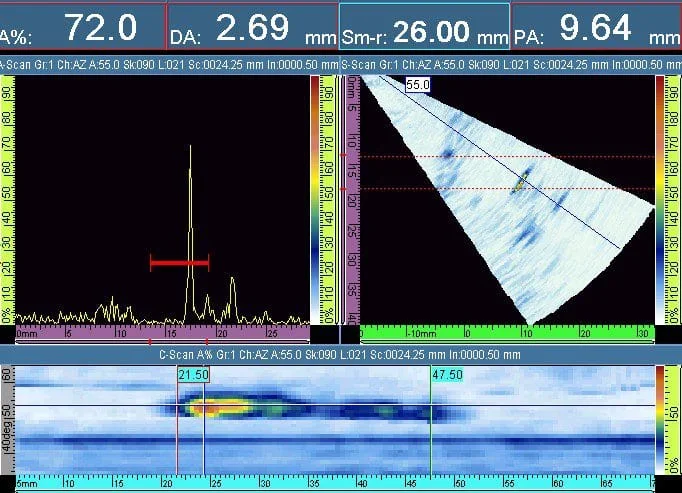

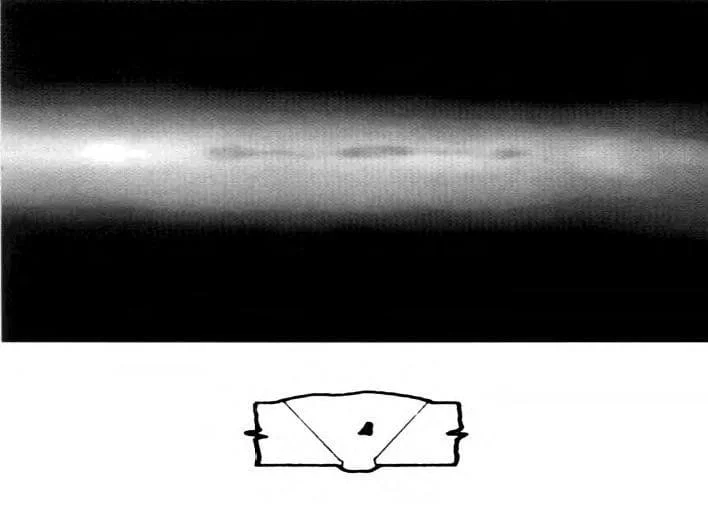

Porosity

Phased Array Image

Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography

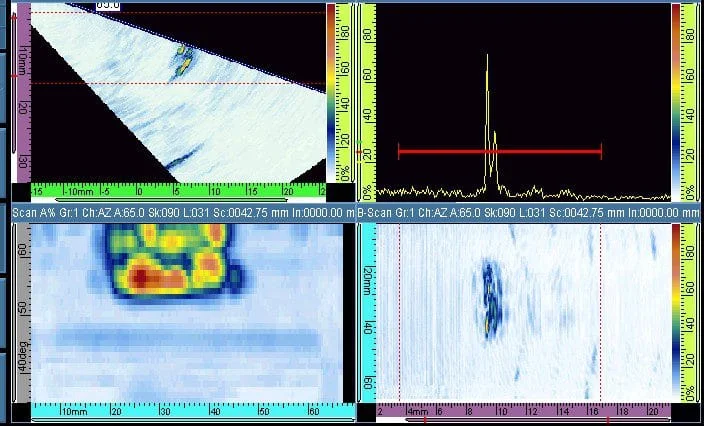

Inclusion

Phased Array Image

Presentation On Phased Array UT in Lieu of RadiographyLack of Root Fusion

Presentation On Phased Array UT in Lieu of Radiography Phased Array Image

Presentation On Phased Array UT in Lieu of Radiography Presentation On Phased Array UT in Lieu of Radiography

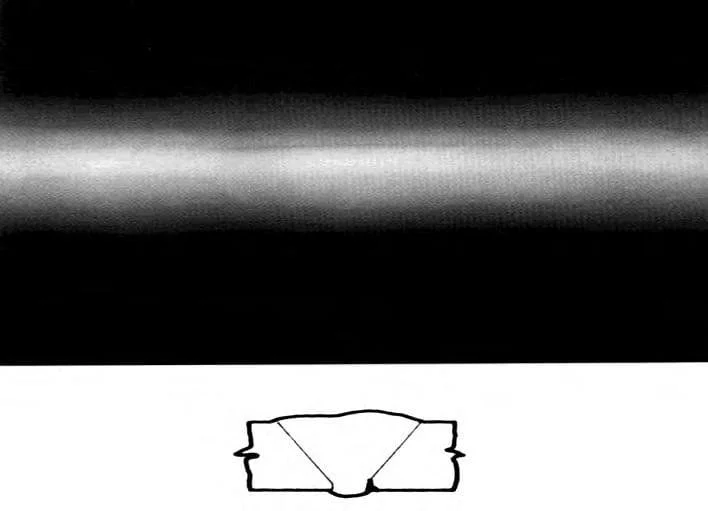

Concave of Root

Phased Array Image

www.sajetc.com

PAUT vs. RT Advantages

PAUT vs. RT Advantages

  1. Many functional advantages from switching from

RT to PAUT.

  1. No radiation
  2. No licensing
  3. No chemical wastes
  4. Less subjective data interpretation
  5. Minimizes data storage problems
  6. Minimizes materials handling issues
  7. Minimizes production disruptions
  8. Better detection of planar defects
  9. Can size in vertical plane for ECA
  10. Lower reject rates
  11. Fast and cost effective

PAUT Code Updates

Codes

  1. ASME Code Case N- 659-2 permits Phased Array Ultrasonic Testing (PAUT) for Replacement of RT with PAUT for feeder tubes in nuclear reactor.
  2. ASME CC 2541 Permits Phased Array Ultrasonic Testing (PAUT) in Section V, Article 4.
  3. ASME CC 2235-9 permits UT in lieu of RT in Section VIII, Divisions 1 and 2.
  4. ASME CC 2557 permits PAUT S-Scan in Section V, Article 4.
  5. ASTM has published three Standard Practices: 2491, 2700, 2904
  6. ISO, Chinese, Japanese working on PAUT codes.
