• Phased Array Ultrasonics (PAUT)

  PAUT Scanning plan for welding joint ISO13588

  Posted by chris on 21/05/2021 at 6:35 am

  Hi Everyone,
  my question is scanning plan for welding joint according to ISO13588:2019.
  please read uploaded table 2 of ISO 13588, in this table, only single V type joint is stipulated, no cases for doube V, or “K” joint, and no description for cases with thick plate.
  I hope the perfect one is annex A of ISO17640.
  so the problem is nothing to follow, could you (everyone experienced master) share something, so that new guy like me could find the way?
  thanks a lot here.

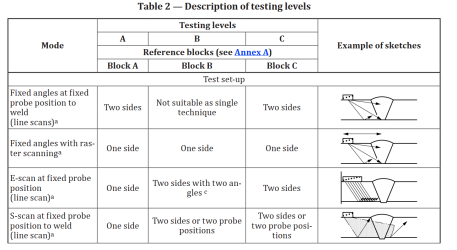

  table-2-ISO-13588.png 126 KB Image File - Click to view

  Options

  • Copy Download Link

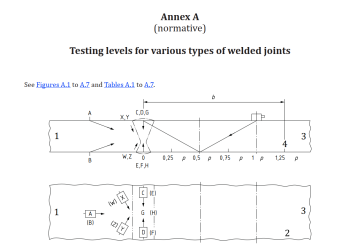

  annexa.png 63 KB Image File - Click to view

  Options

  • Copy Download Link

  chris replied 3 years, 7 months ago 1 Member · 0 Replies
