    PAUT Interpretation Test 🙂

    Posted by doug on 05/07/2021 at 9:11 am

    How many of us PAUT inspectors know what type of defect this is? 😀

    Both images represent one defect just in different place/ position.

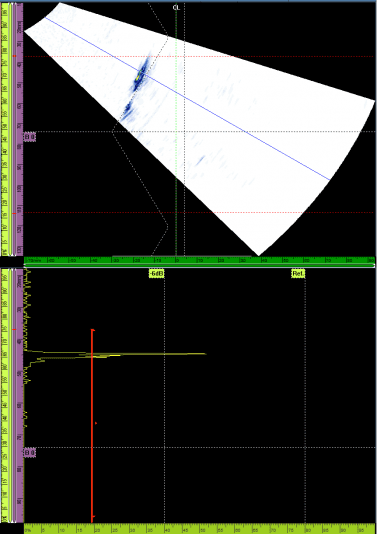

    PAUT Scan Defect

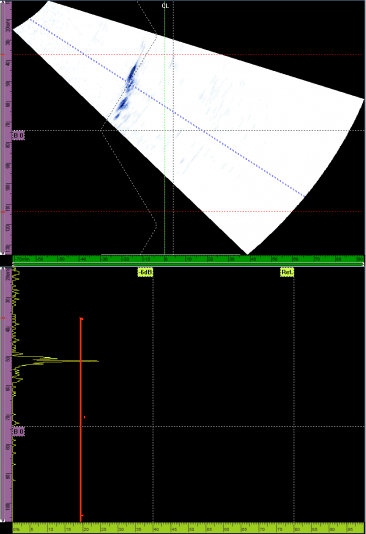

    PAUT Defect scan 2
    nde replied 2 years, 9 months ago 2 Members · 1 Reply
  • 1 Reply
  • Phased Array Ultrasonics (PAUT)

    nde

    Member
    07/07/2021 at 3:11 am

    Loking at Sectorial, it does look like it follows side wall fusion face but A scan signal from it represents crack like defect therefore, I would go with cracking.
