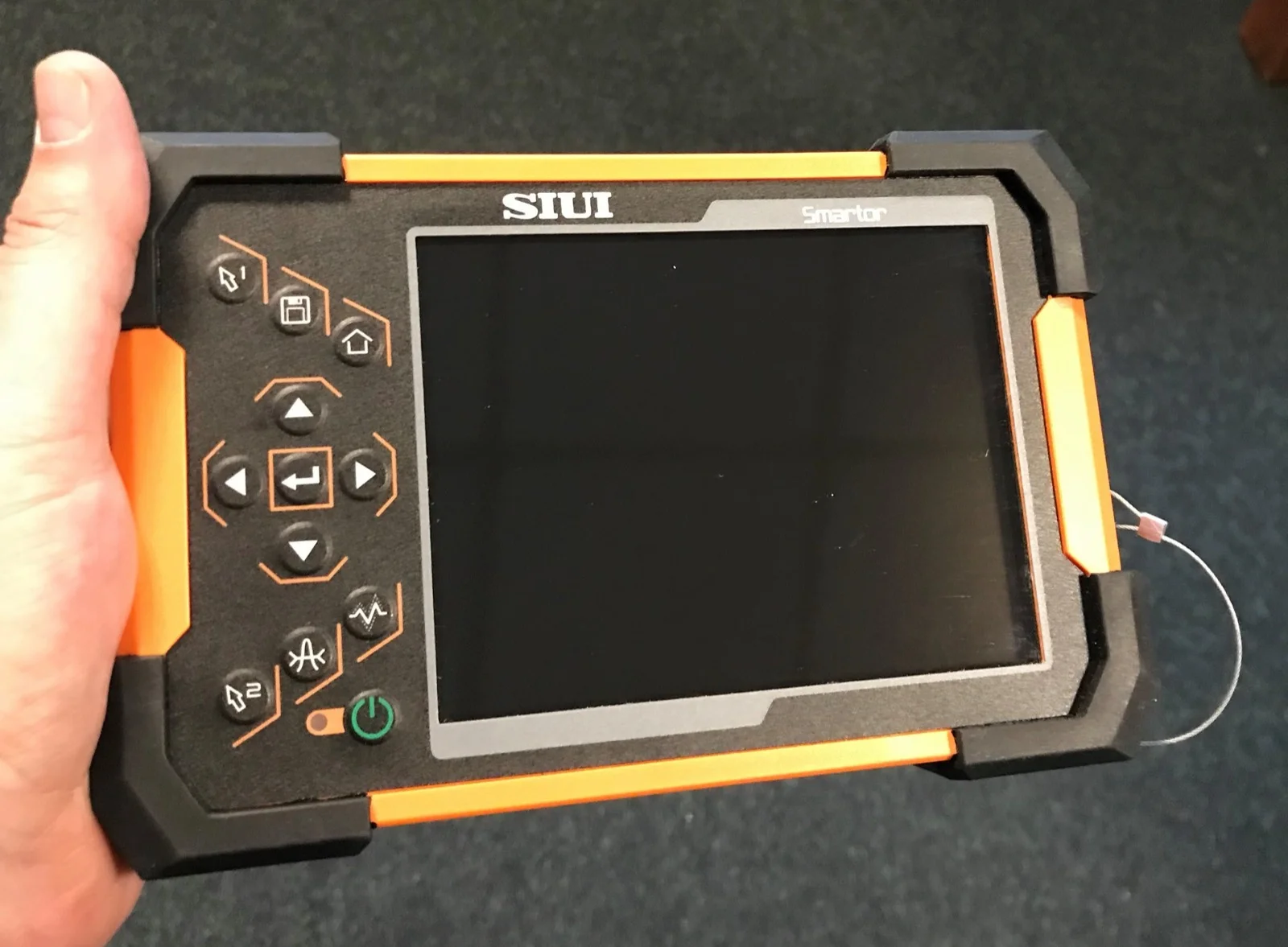

New SIUI Smartor compact flaw detector from a German NDT supplier. The handheld unit measures about 198 x 128 x 53 mm, weighs roughly 0.85 kg with its battery and has a 5.7-inch 640 x 480 colour display. Base software covers signal detection and measurement with two gates, alarms and DAC/AVG evaluation, and the unit can be set up for left- or right-handed one-hand use, with SD and USB interfaces. Add-on modules include TCG, probe spectrum analysis, weld ray-tracing, crack-height sizing, curved-surface correction, B-scan, AWS and API evaluation. The kit comes with a battery, charger, protective cover and an EN 22232-1 certificate.

Key details

• 5.7-inch colour LCD, 640 x 480
• Excitation pulse up to 350 V
• 0.85 kg including battery
• SD and USB interfaces
• DAC and AVG evaluation as standard

What is included

• Smartor handheld unit
• Battery
• Charger
• Protective cover
• Certificate to EN 22232-1

Buying this item

Offered by TCP Prüftechnik GmbH, Münster, Germany. Asking price: EUR 4,900 (excl. VAT, plus shipping; optional software modules extra).

Checked as available on 14 September 2026. Stock, prices and terms change, so confirm with the seller before you commit. See the seller’s own listing.
